Overview

The ezPoster 600 Series are all-in-one portable LED displays with a sleek, slim design, feature display size of 23.6×79.7 inch, available in pixel pitch of 1.875mm with the resolution of 320 x 1080. The ezPosters come with built-in media player, with WiFi and ethernet connectivity, easy to setup, can be used standalone, or cascade multiple pieces to a bigger video wall. Photos and videos can be uploaded through the ezPoster software and played back on the embedded media player, or feed your own media through the HDMI port. The EP600 series is great for exhibits, lobbies and events.

Key Features

  • All-in-One, plug and play
  • Built-in Quad-core Media Player with 8GB storage
  • Built-in WiFi Hotspot, easily connect to PC or smart phone
  • HDMI In and HDMI Out Port, build a cascaded big screen with ease
  • Intuitive Software for Windows, iOS and Android
  • Premium LED lamps and components
  • Front acrylic cover provides extra protection and professional look

Features

ezPoster 600 series Features

All-in-One, Plug & Play

While the traditional LED display setups need LED Display, Controller, Computer and Media Player, the Exovisual ezPoster comes with all in one. Just plug the power cable and it’s ready to play. No complex installation or configuration which only can be done by trained professionals. Exovisual ezPosters can be used just like a TV. It’s a versatile solution for creating your visual design.

Intuitive Software

Specifically designed for the Exovisual ezPoster, our dedicated software provides a straight-forward user interface, is available on all major platforms.

  • User friendly, easy and powerful
  • Group functionality allows easy setup of groups and convenient control to each group.
  • Easily transform multiple ezPosters to a large display with the cascade wizard.

Expandable

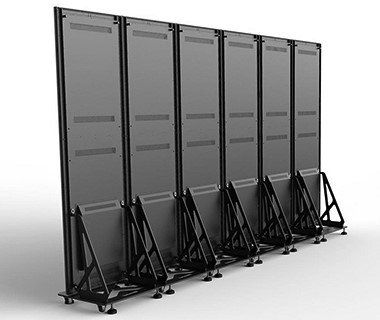

The ezPosters can be transformed into a large display, used as groups, or as an individual design element.

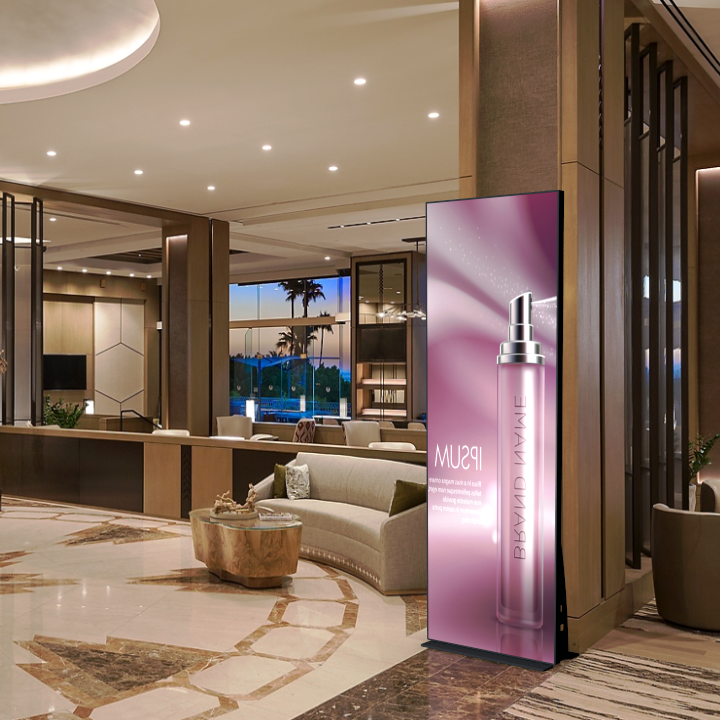

With stunning visual effect, more vivid colors and higher brightness than other display technologies, easier setup and operation than a regular LED wall, the Exovisual ezPoster is a versatile solution for creating your visual designs with LED display technology.

Rich Interface & Connectivity

Designed for supreme user experience, convenient communication, and easy control of the screen,

The Exovisual ezPosters are built with multiple connection options:

  • USB-Tethering, Wifi Access point, WiFi, Ethernet
  • HDMI in/out
  • 3.5mm Audio output

Video Tour

Let’s go through the process together

Specifications

ezPoster 600 series Technical Specifications

Model EP600-1.8
Pitch (mm) 1.875
Display Size (W X H) 600 x 2025 mm / 23.6 x 79.7 inch
Resolution 320 x 1080
Total Pixels 345,600
Dimension (W X H X D) 616 x 2041 x 80 mm / 24.6 x 80.4 x 3.15 inch
Weight 37.6kg / 82.9lb
Power Input AC 100-240V 50/60Hz
Max. Power Consumption 650W
Avg. Power Consumption 280W
Connectivity WiFi AP, WiFi, Enthernet, USB-Tethering, 2 x USB, HDMI In, HDMI out, 3.5mm Audio
Brightness 750 nits
Gray Scale 16,384
Refresh Rate (Hz) >= 2880
Frame Rate (fps) 60
Operating Temperature -10°C to 45°C / 14°F to 113°F
Operating Humidity 10 – 90% RH
IP Rating Front IP40 / Rear IP40
Operating Life 100,000 hours
Module Size 300 x 168.75 mm
LED Type SMD1515
Module Resolution 160 x 90
Scan Mode 1/30 Dynamic Scan
Module Count 24

Accessories

ezPoster 600 series Accessories

Base Stand

Hanging Bracket
